Socket-type sonic logging pipe is a new type of sonic logging pipe product. This type of sonic logging pipe is extremely simple and convenient to install, and the overall tensile strength is relatively high. However, this type of sonic logging pipe has extremely high requirements for the use environment and is relatively expensive, so it needs to be selected with caution.

Socket-type sonic logging pipe installation and use method:

1. Put the bottom pipe of the socket-type sonic logging pipe (the bottom pipe is sealed) on the ground to check whether the sealing ring is intact, and then insert the B pipe into the bottom of the A pipe. When you hear a click, the installation process is completed. After connecting, put the sonic logging pipe into the steel cage and fasten it to the main reinforcement in the steel cage according to the specified size. The parts without steel cages should be reinforced with three main reinforcements or steel support.

2. Then when installing the steel cage, install it according to the above method. After installation, you need to use iron wire to pass through the lifting ring on the socket-type sonic logging pipe and tie it to the steel cage. The tie should not be too tight so that the sonic logging pipe can swing up and down.

3. After the socket-type sonic logging pipes between the steel cages are connected, fill the socket-type sonic logging pipes with clean water and cover them with rubber sealing covers (or wooden plugs).

All sonic logging pipes, accessories, wooden plugs, etc. are all prepared for you when they leave the factory, and you can directly install and use them at the construction site.

Tags: Socket type sonic logging pipe

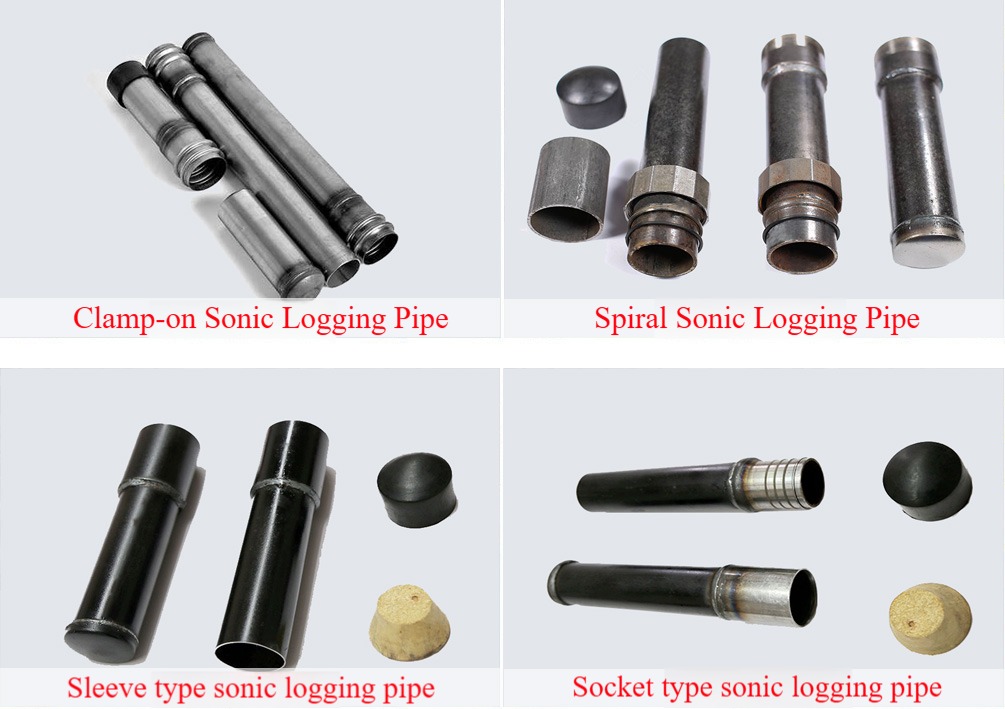

Socket type sonic logging pipe
