The clamp-type (hydraulic) sonic logging pipe is a popular product at present. This product is convenient and quick to install, has no material loss and is relatively low in cost. It is used in various projects and is widely favored by customers.

Installation and use method of clamp-type (hydraulic) sonic logging pipe:

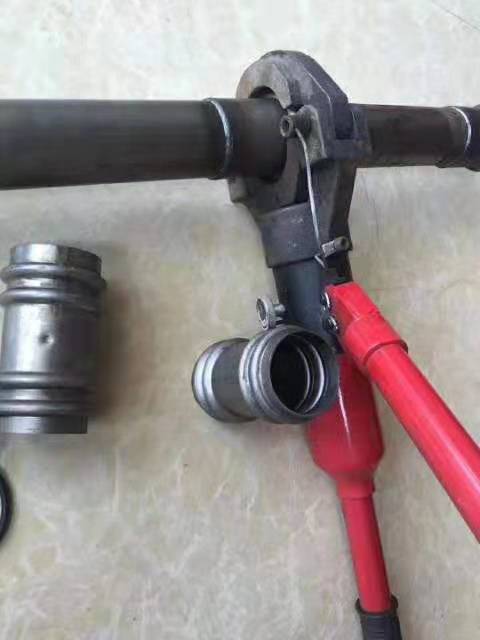

1. Insert the bare end of the bottom pipe of the clamp-type sonic logging pipe into the socket end of the middle pipe, and then align the annular recess of the special hydraulic tool die head with the annular recess with a rubber ring in the end of the socket (or joint) to tighten the pipe at the joint.

2. Align the bottom of the second sonic logging pipe (with a line mark) with the tied socket part to ensure that the two pipes are on the same axis, and then install it according to the above method.

3. After the two sections of the clamp-type sonic logging pipe are connected, use wire to fix the unfastened sonic logging pipe in the steel cage. After the steel cage is piled, fill the clamp-type sonic logging pipe with clean water and cover it with a rubber sealing cover (or wooden plug).

All sonic logging pipes, accessories, hydraulic clamps, wooden plugs, etc. are all prepared for you when they leave the factory, and you can install and use them directly at the construction site.
